Revolutionizing offshore monopile installation with wave-shielding & enhanced fuel efficiency
The U-STERN™, developed by Ulstein Design & Solutions B.V., enables longitudinal storage of monopiles and upending in the ship centre line. This allows the ship to head into the waves during the installation process, minimising ship motions and fuel consumption, while the U-STERN provides excellent shielding from the waves. Combining the U-STERN with transverse and longitudinal skidding systems, offshore lifts for monopiles are eliminated, as the main crane is only used to support the upending and lowering of the foundation.
Installing next-generation foundations safer, smarter and more competitive
The U-STERN looks like a simple recess in the stern.
But it is much more than that,
states Ko Stroo, Product Manager/Lead Naval Architect in Ulstein Design & Solutions BV.
The shape and location of the recess are finely tuned with CFD (Computational Fluid Dynamics) and motion analysis to make it work harmoniously with the crane and mission equipment
More than two years of R&D have enhanced our understanding of improving the dynamics associated with DP monopile installation. This has resulted in the U-STERN having significant benefits over ‘traditional’ monopile installation on the side of a vessel
- Increased operability due to a 25 % reduction in motions, excellent wave shielding in the ‘moonbay’ and controlled upending of monopiles;
- 50% power reduction in DP (Dynamic Positioning) operations due to weather vaning;
- Avoiding port (and offshore) related challenges related to transverse monopile transport and upending;
- Safer lifting operations offshore;
The idea of longitudinal monopile installation originates in our vast experience in developing heavy lift pipelay vessels with a centerline firing line,
says Edwin van Leeuwen, Managing Director in Ulstein Design & Solutions BV.
The U-STERN is not a ‘one-trick pony’, as the vessel is also suitable for jacket and other heavy lift installation work. In the past months, we have presented the U-STERN to major contractors and operators, many recognizing this as the most viable solution for installing the next-generation monopile foundations.

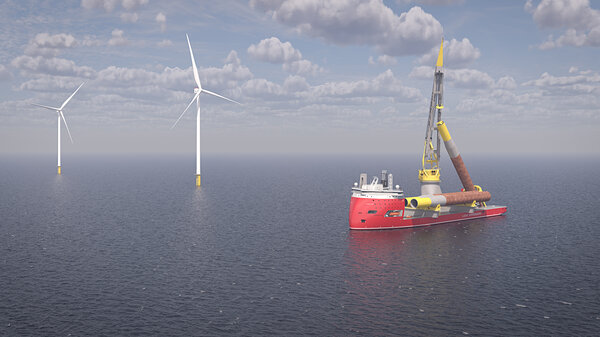

ULSTEIN U-STERN longitudinal monopile installations.
